产品描述

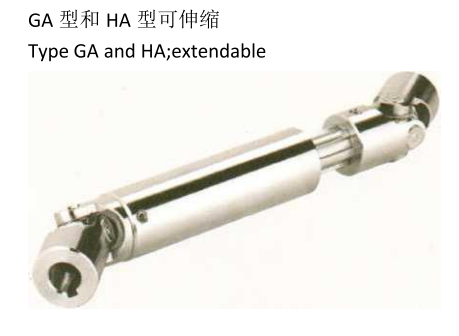

GA型和HA型可伸缩
Type GA and HA;extendable

•每节最大转动角度为30°
Precision double joint-extendable, maximum
Articulation angle 30 for each joint
•连接更大的轴间距
Bridging of bigger shaft distances
•GA 型(滑动轴承)nmax=1000 min-1
Type GA(plain bearing) nmax=1000 min-1
•HA 型(滚针轴承)nmax=4000 min-1
Type HA (needle bearing) nmax=4000 min-1
•成品孔公差为H7,另可根据要求，开键槽、六角孔和方孔
Available with finish bore H7-on request with keyway, hexagon bore or square bore

规格 Size	尺寸 Lmin/Lmax=标准长度 Dimensions Lmin/Lmax. Standard lengthes
01	140	160	180	230
01	170	200	240	330
02	160	180	200	220	250	280	300
02	wo	225	2/0	300	355	420	450
03	170	180	200	220	250	280	300	350	400
03	200	220	260	300	350	420	450	550 650
04	190	210	240	250	275	300	380	400
04	210	250	350	350	390	430	590	630
05	230	250	270	290	300	400	500
05	280	320	370	400	415	620	820
06	250	270	290	320	380	420	500
06	300	340	380	400	560	640	800
07	250	270	290	330	350	470
07	280	320	350	430	470	710
	295	310	350	380	420	460	500
Vo	345	375	450	500	590	660	745
09	330	350	370	400	450	500	540
09	380	420	455	510	620	720	795

HA型带滚针轴承rimax=4000 min-1

Type HA needle bearing nmax=4000 min-1

GA型带滑动轴承nmax=1000 min

Type GA plain bearing nmax=1000 min-1

HA型带滚针轴承rimax=4000 min-1

Type HA needle bearing nmax=4000 min-1

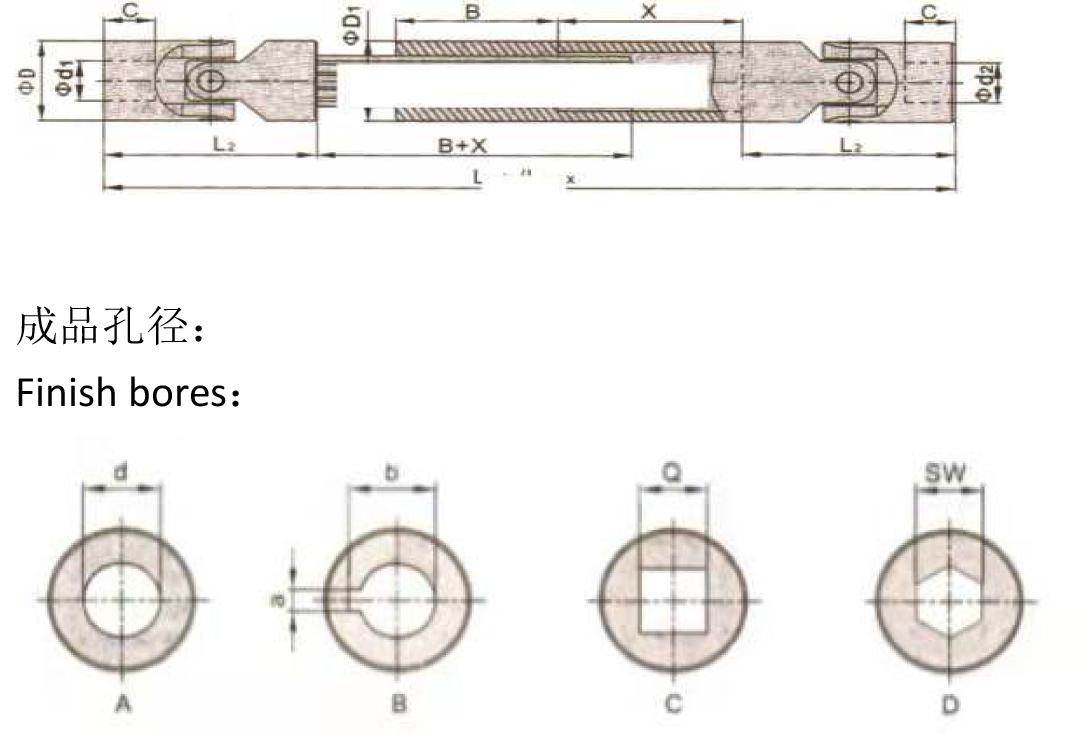

规格Size		dld2 旧7]	D	L2	C	LmiiL/Lniax./X	B	a [JS9]	b	Q[H8]	sw [H8]	D1
GA	HA	dld2 旧7]	D	L2	C	LmiiL/Lniax./X	B	a [JS9]	b	Q[H8]	sw [H8]	D1
01 GA	01 HA	10	22	48	12	根据用户要求决定 T.min /T.max	30	3	11.4	10	10	22
02 GA	02 HA	12	25	56	13		40	4	13.8	12	12	26
03 GA	03 HA	14	28	60	13		40	5	16.3	14	14	29
04 GA	04 HA	16	32	68	16		40	5	183	16	16	32
05 GA	05 HA	18	36	74	17		40	6	20.8	18	18	37
06 GA	06 HA	20	42	82	18		45	6	22.8	20	20	42
07 GA	07 HA	22	45	95	22		50	6	24.8	22	22	47
08 GA	08 HA	24	50	108	26		50	8	283	25	25	52
09 GA	09 HA	30	58	122	29		60	8	33.3	30	30	58
10GA	10HA	35	70	140	35		70	10	38.3	-	-	70
11 GA	11HA	40	80	160	40		80	12	43.3	-	-	80
12 GA	12 HA	50	95	190	50		90	14	53.8	-	一	95

安装长度 L 和 X(行程)的计算 Ca I cu I at i on of mount i ng lengthes L and X (Stroke)

行程 Stroke form	Lmax. — 2L2 — B 2		...Lmax.-2L2+B ¹-^mln- 2		最小尺寸 minimum dimension Lmin Lmin. =L2+B+X+L2
0订货描述示例： Order form：	06GA	012/012		550/650		A （B、C、D）内孔结构形式
	规格与型号Size/type of joint	成品孔径Finish bore (H7)		安氏 Lmin/Lmax Mounting length Lmin/Lmax		A(B、C、D)bore Design Form
