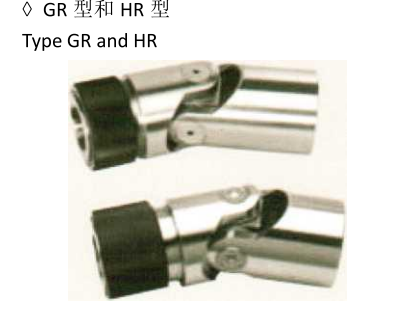

GR型 HR型快速锁紧万向节
PDF下载
产品描述
快速锁紧精密万向节
WITH QUICK LOCKING PRECISION JOINTS
WITH QUICK LOCKING PRECISION JOINTS
 |
•单节万向节带快速锁紧(可脱开) Precision single joint with quick locking (separable) •Gr型带滑动轴承nmax=1000min-l Type GR with plain bearing nmax=1000 min-1 •HR型带滚针细承nmax=4000 min'l Type HR with needle bearing nmax=4000 min-1 •每节最大转动角度为30° Maximum articulation angle 30° •所供的快速锁紧装置(d2)仅有公差为H7的成品孔带DIN6885/1-JS9标 准的键槽或六角孔可选 Quick locking (d2) only available with H7 bore and keyway to DIN 6885 sheet 1-JS9 or hexagon bore |
 |
 |
| GR型带滑动轴承nmax=1000 min-1 Type GR with plain bearing nmax=1000 min-1 |
HR型带滚针轴承nmax=4000 min-1 Type HR with needle bearing nmax=4000 min-1 |

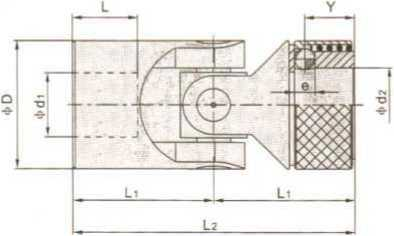

| 规格Size | di,d2 [H7] |
D | L2 J | C | Y | e | f | a [JS9] |
b | SW [H8] | ||
| GR | HR | |||||||||||
| 01 GR | - | 8 | 16 | 52 | 26 | 14 | 9.5 | 3.5 | 7.0 | 2 | 9.0 | 8 |
| 02 GR | 02 HR | 10 | 23 | 62 | 31 | 17 | 11.5 | 4.0 | 8.7 | 3 | 11.0 | 10 |
| 03 GR | 03 HR | 12 | 25 | 74 | 37 | 21 | 13.5 | 4.0 | 11.0 | 4 | 13.3 | 12 |
| 04 GR | 04 HR | 16 | 32 | 86 | 43 | 24 | 14.0 | 6.35 | 14.8 | 5 | 17.3 | 16 |
| 05 GR | 05 HR | 18 | 36 | 96 | 48 | 28 | 19.0 | 8.0 | 16.0 | 6 | 19.8 | 18 |
| 06 GR | 06 HR | 20 | 42 | 108 | 54 | 31 | 19.0 | 8.0 | 18.0 | 6 | 22.3 | 20 |
| 07 GR | 07 HR | 22 | 45 | 120 | 60 | 34 | 20.5 | 10.0 | 20.0 | 6 | 24.8 | 22 |
| 08 GR | 08 HR | 25 | 50 | 132 | 66 | 38 | 20.5 | 10.0 | 23.0 | 8 | 28.3 | 25 |
| 09 GR | 09 HR | 30 | 58 | 166 | 83 | 49 | 25.0 | 10.0 | 28.0 | 8 | 33.3 | 30 |
| 订货描述示例： Order form： |
03 G | A(B)内孔结构形式 | 012/012 |
| 规格与型号Size/type of joint | A(B)bore Design Form | 成品孔径 Finish bore (H7) | |
