产品描述
产品结构特性与性能
|

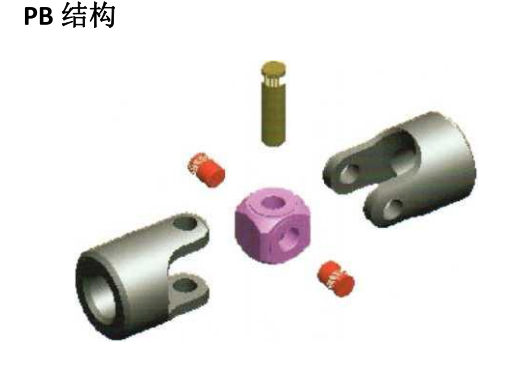

1.最大转速:≤1000RPM
Max.speed:≤1000RPM
2.最大静扭矩:≤5000N.m
Static breaking torque:≤5000N.m
3.最大工作角45°
Max.working angle 45°
|
 |
 |

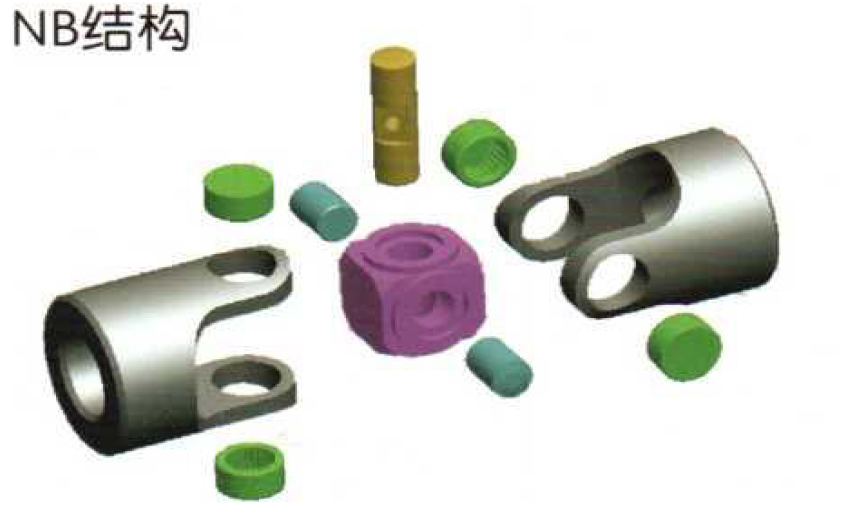

1.最大转速:≤1300RPM
Max.speed: ≤1300RPM
2.最大静扭矩:≤2000N.m
Static breaking torque: ≤2000N.m
3.最大工作角45°
Max.working angle 45°
|
|

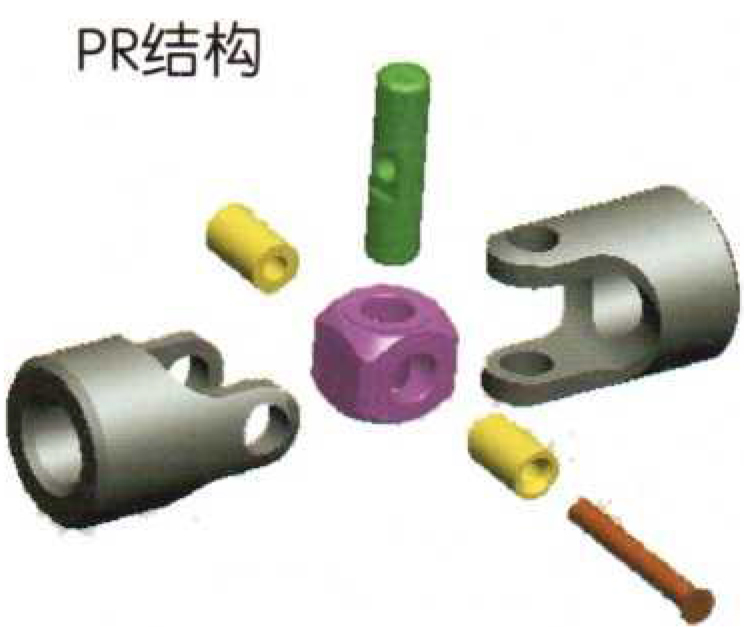

1.最大转速:≤2500RPM
Max.speed:≤2500RPM
2.最大静扭矩:≤2000N.m
Static breaking torque:≤2000N.m
3.最大工作角45°
Max.working angle 45°
|
 |
 |

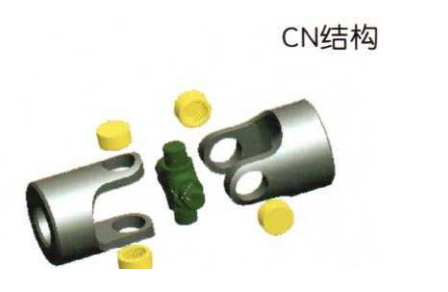

1.最大转速:之4000RPM
Max.speed:≤4000RPM
2.最大静扭矩:≤3000N.m
Static breaking torque:≤3000N.m
3.最大工作角45°
Max.working angle 45°
|
 |

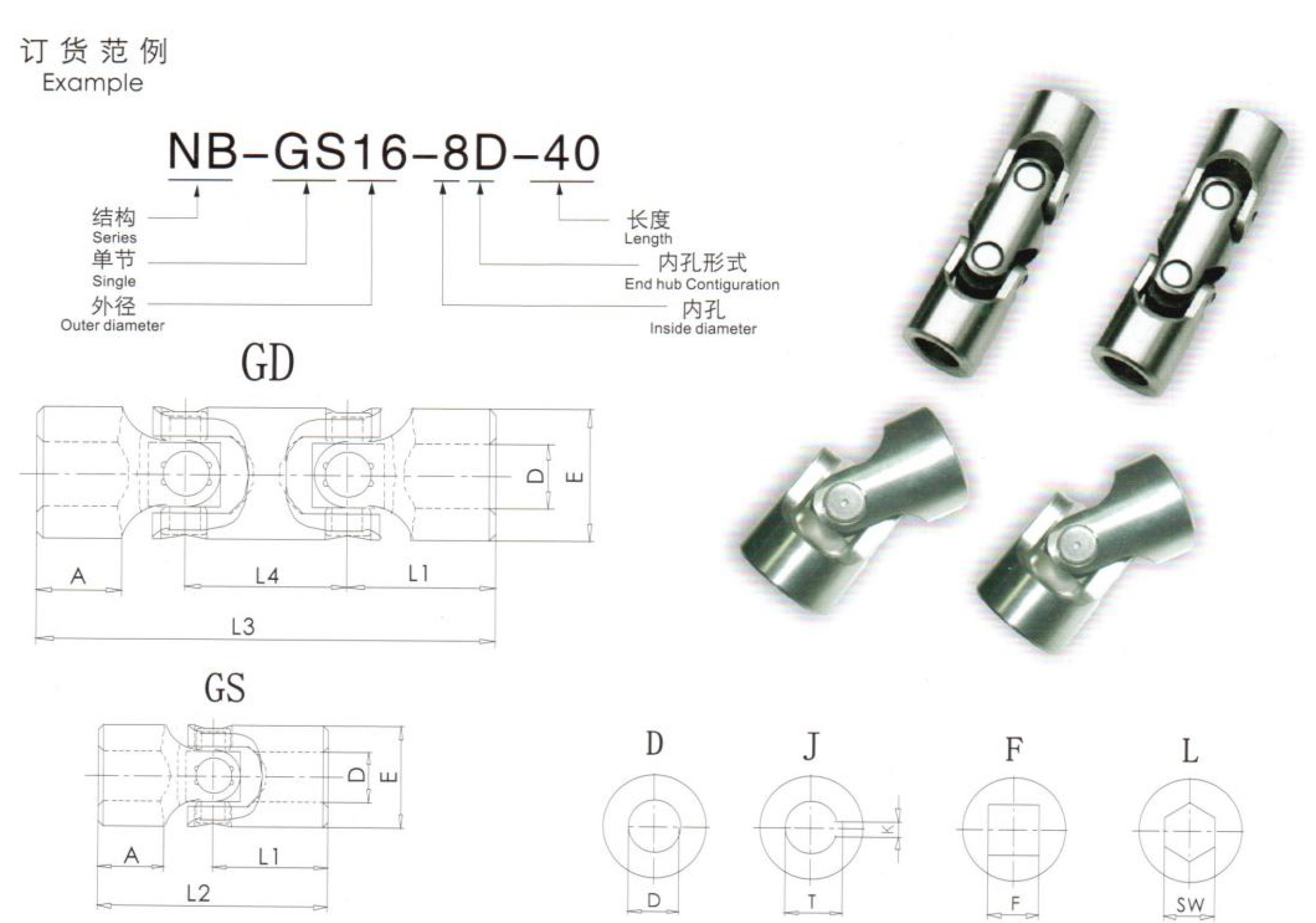

| 尺寸 型号规格 | D(H7) | E | L2 | LI | A | L4 | L3 | k (JS9) |
T | F(H8) | SW (H8) | |
| GS16 | GD16 | 8 | 16 | 40 | 20 | 1 1 | 22 | 62 | 2 | 9 | 8 | 8 |
| GS20 | GD20 | 10 | 20 | 45 | 22.5 | 1 1 | 24 | 72 | 3 | 1 1.4 | 10 | 10 |
| GS22 | GD22 | 10 | 22 | 48 | 24 | 13 | 26 | 74 | 3 | 1 1.4 | 10 | 10 |
| GS25 | GD25 | 12 | 25 | 56 | 28 | 15 | 30 | 86 | 4 | 13.8 | 12 | 12 |
| GS28 | GD28 | 14 | 28 | 60 | 30 | 15 | 36 | 96 | 5 | 16.3 | 14 | 14 |
| GS32 | GD32 | 16 | 32 | 68 | 34 | 17 | 40 | 108 | 5 | 183 | 16 | 16 |
| GS36 | GD36 | 18 | 36 | 74 | 37 | 19 | 46 | 120 | 6 | 20.8 | 18 | 18 |
| GS40 | GD40 | 20 | 40 | 82 | 41 | 19 | 50 | 132 | 6 | 22.8 | 20 | 20 |
| GS45 | GD45 | 22 | 45 | 95 | 47.5 | 23 | 55 | 150 | 6 | 24.8 | 22 | 22 |
| GS50 | GD50 | 25 | 50 | 108 | 54 | 28 | 62 | 170 | 8 | 283 | 25 | 25 |
