PB滚花式可伸缩万向节
PDF下载
产品描述

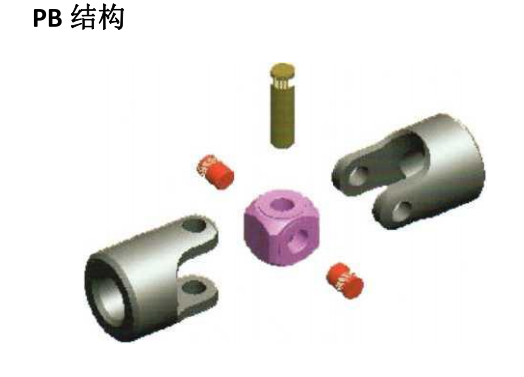

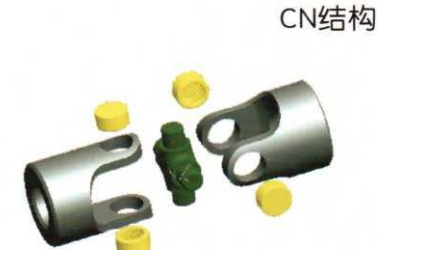

产品结构特性与性能
 |
1.最大转速:≤1000RPM
Max.speed:≤ 1000RPM
2.最大静扭矩:≤5000N.m
Static breaking torque:≤5000N.m
3.最大工作角45°
Max.working angle 45°
|
|
1.最大转速:≤1300RPM
Max.speed:≤1300RPM
2.最大静扭矩:≤2000N.m
Static breaking torque:≤2000N.m
3.最大工作角45°
Max.working angle 45°
|
 |
 |
1.最大转速:≤2500RPM
Max.speed:≤2500RPM
2.最大静扭矩:≤2000N.m
Static breaking torque:≤2000N.m
3.最大工作角45°
Max.working angle 45°
|
|
1.最大转速:之 4000RPM
Max.speed:≤4000RPM
2.最大静扭矩:≤3000N.m
Static breaking torque:≤3000N.m
3.最大工作角45。
Max.working angle 45°
|
 |
 |

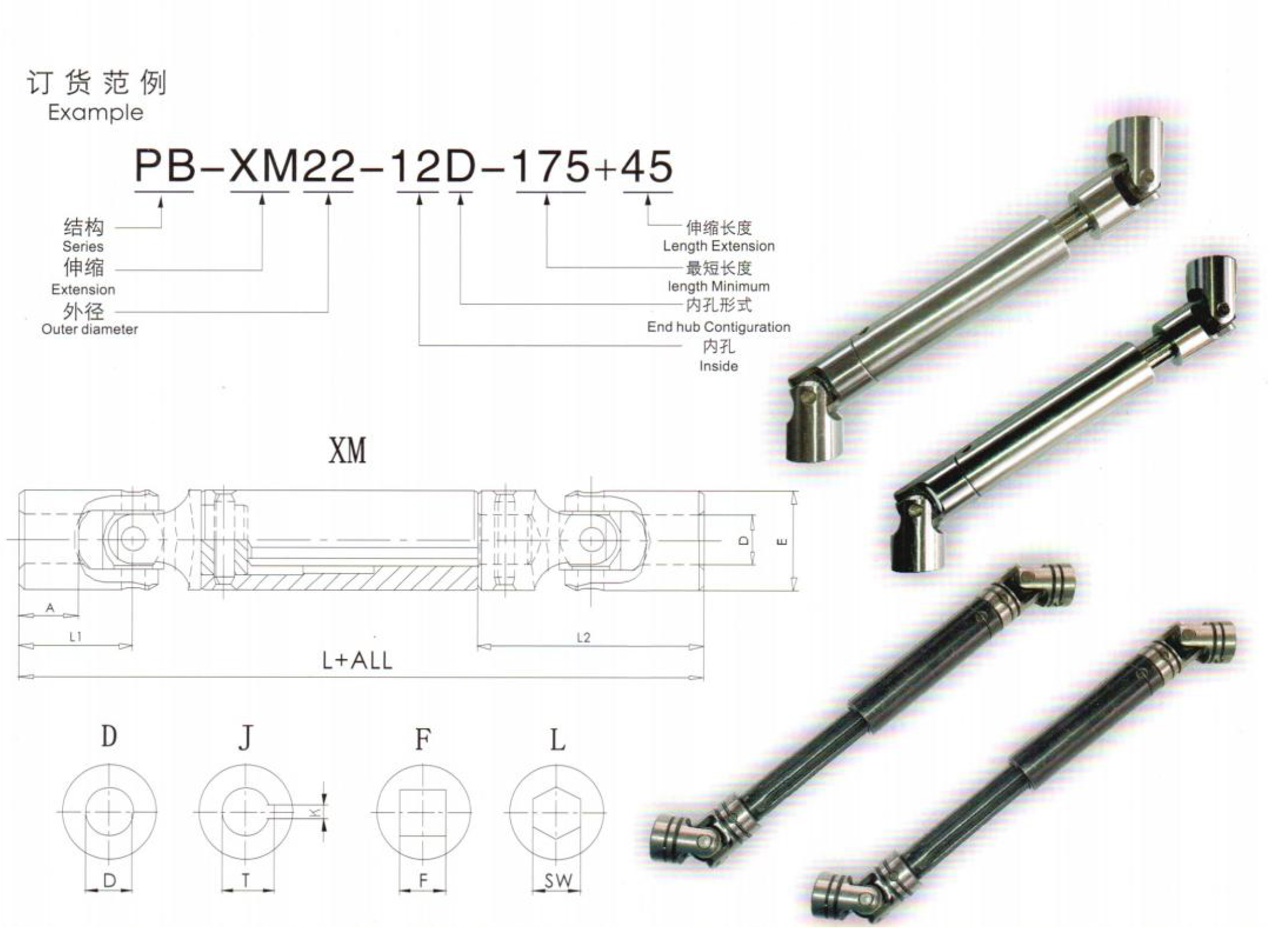

| 尺寸 规格 |
D (H7) |
E | L2 | LI | A | L+ALL | .L+ALL | L+ALL | SPLINE | K (JS9) |
T | F (H8) |
sw (H8) |
| XM20 | 10 | 20 | 45 | 22.5 | 1 1 | 160+45 | 180+60 | 195+75 | 6-14x1 1 | 3 | 1 1.4 | 10 | 10 |
| XM22 | 10 | 22 | 48 | 24 | 13 | 175+45 | 190+60 | 205+75 | 6-14x1 1 | 3 | 1 1.4 | 10 | 10 |
| XM25 | 12 | 25 | 56 | 28 | 15 | 220+50 | 250+100 | 300+150 | 6-16x13 | 4 | 13.8 | 12 | 12 |
| XM28 | 14 | 28 | 60 | 30 | 15 | 240+50 | 265+100 | 330+150 | 6-20x16 | 5 | 16.3 | 14 | 14 |
| XM32 | 16 | 32 | 68 | 34 | 17 | 255+50 | 280+100 | 350+150 | 6-20x16 | 5 | 18.3 | 16 | 16 |
| XM36 | 18 | 36 | 74 | 37 | 19 | 285+70 | 310+100 | 370+150 | 6-22x18 | 6 | 20.8 | 18 | 18 |
| XM40 | 20 | 40 | 82 | 41 | 19 | 320+70 | 350+100 | 370+150 | 6-25x21 | 6 | 22.8 | 20 | 20 |
| XM45 | 22 | 45 | 95 | 47.5 | 23 | 345+70 | 370+100 | 410+150 | 6-25x21 | 6 | 24.8 | 22 | 22 |
| XM50 | 25 | 50 | 108 | 54 | 28 | 370+70 | 400+100 | 450+150 | 6-28x23 | 8 | 28.3 | 25 | 25 |
| XM60 | 30 | 60 | 130 | 65 | 34 | 470+90 | 6-32x26 | 8 | 33.3 | 30 | 30 | ||
| XM70 | 35 | 70 | 140 | 70 | 33 | 470+90 | 8-38x32 | 10 | 38.3 | / | / | ||
| XM80 | 40 | 80 | 160 | 80 | 40 | 470+90 | 8-48x42 | 12 | 43.3 | / | / | ||
| XM95 | 50 | 95 | 190 | 95 | 50 | 530+90 | 8-48x42 | 14 | 53.8 | / | / |
|
1.最大转速:≤1300RPM
Max.speed:≤1300RPM
2.最大静扭矩:≤2000N.m
Static breaking torque:≤2000N.m
3.最大工作角45°
Max.working angle 45°
|
