1A定位平行联轴器
PDF下载
产品描述
微型联轴器

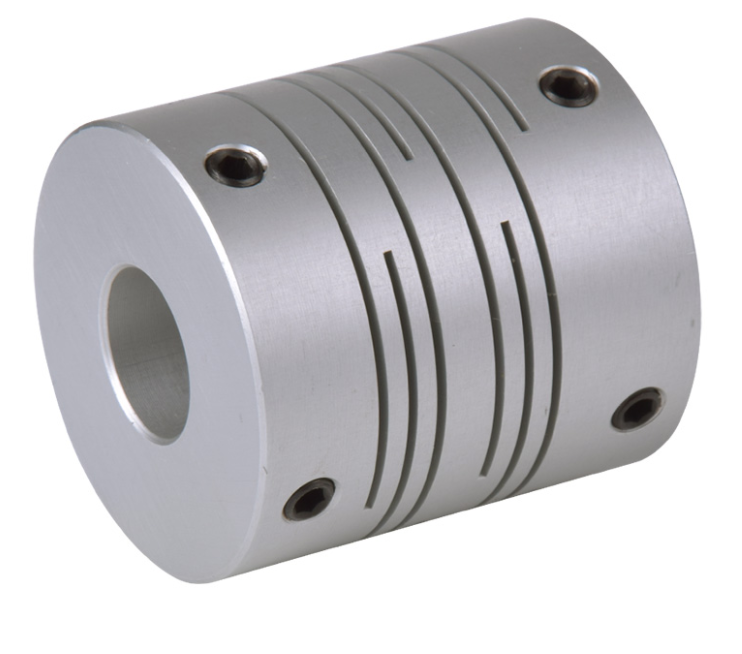

KM1A定位平行联轴器
KM1A定位平行联轴器
| KM1A定位平行联轴器 ☆特点: •无间隙，同步运转； •有良好的柔性； •高强度铝台金，低惯量； •保养容易，无需润滑油及其它维修服务; •螺丝定位式。 ☆定货举例 例 KM1A-15.5-04-05 KM1A:平行线定位型材料铝合金 15.5：外径尺寸 04： dl轴径为4mm 05： d2轴径为5mm |
 |
|

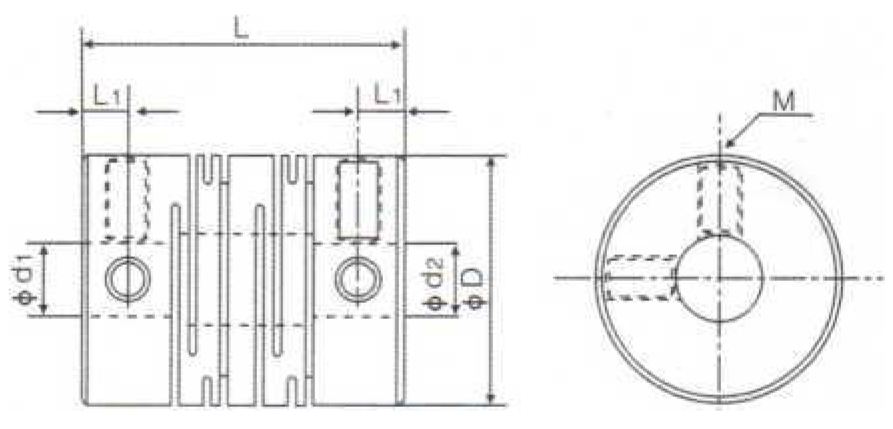

☆外形图KM1A系列
|
 |
选型尺寸表
| 型号Type | D | L | dl d2轴径 | Li | M | 拧紧力矩 (Nm) |
| KM1A-15.5 | 15.5 | 23 | 345 | 3 | M3 | 0.7 |
| KM1A-17.5 | 17.5 | 23 | 456 | 3 | M3 | 0.7 |
| KM1A-19.5 | 19.5 | 24.5 | 6 635 8 | 3 | M3 | 0.7 |
| KM1A-25.4 | 25.4 | 25.4 | 6 6.35 8 10 | 3.8 | M4 | 1.7 |
| KM1A-28.6 | 28.6 | 28.6 | 6 6.35 8 10 12 12.7 | 4 | M4 | 1.7 |
| KM1A-38.1 | 38.1 | 38.1 | 8 10 12 12.7 14 15 | 5 | M5 | 2 |
| KM1A-42 | 42 | 50 | 10 12 14 15 1618 | 7.8 | M6 | 4.5 |
| KM1A-50 | 50 | 50 | 14 15 16 18 19 20 | 7.8 | M6 | 7 |
技术参数
| 型号丿 Type |
额定扭矩 (N. m) |
最大扭矩 (N. m) |
最大转速 (min-1) | 惯性力矩 (kg. mo | 静态扭矩刚性 (N. m/rad) |
径向偏差 (mm) |
角向偏 差(° ) | 轴向偏差 (mm) |
| KM1A-15.5 | 0.3 | 0.6 | 24000 | 3. 3X10-7 | 46 | 0. 10 | 2 | ±0.3 |
| KM1A-17.5 | 0.4 | 0.8 | 22000 | 5.2X10" | 100 | 0. 10 | 2 | ±0.3 |
| KM1A-19. 5 | 0.5 | 1 | 19000 | 9.0X10" | 115 | 0. 10 | 2 | ±0.4 |
| KM1A-25. 4 | 1 | 2 | 15000 | 2. 6X10-6 | 165 | 0. 15 | 2 | ±0.5 |
| KM1A-28. 6 | 1.8 | 3.6 | 14000 | 7.8X10* | 260 | 0. 15 | 2 | ±0.5 |
| KM1A-38.1 | 4.5 | 9 | 13000 | 2. 1X10-5 | 330 | 0. 15 | 2 | ±0.5 |
| KM1A-42 | 5.2 | 10.4 | 11000 | 3. 8X10-5 | 480 | 0. 20 | 2 | ±0.5 |
| KM1A-50 | 10 | 20 | 7700 | 1.0X10-4 | 560 | 0. 20 | 2 | ±0. 5 |
