产品描述

Z6 type locking assemblies

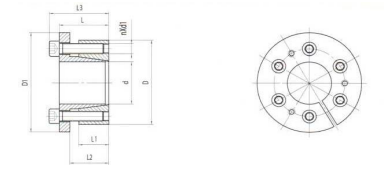

基本尺寸和参数 Basic dimensions and parameters of the locking assemblies,type Z6

	基本尺寸 Basicdimensions							内六角螺钉 Inhexagonscrews			额定负荷 Rated load Pf			Df
	基本尺寸 Basicdimensions							内六角螺钉 Inhexagonscrews			额定负荷 Rated load Pf			rT
规格 sizesdxD	d	D	Dl	L	Ll	L2	L3	规格 disiz es	数量n QTY	Ma N. m	FtK N	MtK N.m	N/m	N/m	G(kg)
规格 sizesdxD	mm							规格 disiz es	数量n QTY	Ma N. m	FtK N	MtK N.m	m2	m2
14X55	14	55	62	30	17	22	38	M8	3	25	18	127	208	52.5	0. 48
16X55	16	55	62	30	17	22	38	M8	3	25	18	142	181	52.5	0. 47
18X55	18	55	62	30	17	22	38	M8	3	25	18	157	161	52.5	0. 46
19X55	19	55	62	30	17	22	38	M8	3	25	¹⁸	165	152	52.5	0. 46
20X55	20	55	62	30	17	22	38	M8	3	25	18	172	145	52.5	0. 45
22X55	22	55	62	30	17	22	38	M8	3	35	25.5	285	186	75	0.44
24X55	24	55	62	30	17	22	38	M8	3	35	25.5	307	170	75	0. 42
25X55	25	55	62	30	17	22	38	M8	3	35	25.5	315	163	75	0. 41
28X55	28	55	62	30	17	22	38	M8	3	41	31.5	435	175	89	0. 39
30X55	30	55	62	30	17	22	38	M8	3	41	31.5	472	163	89	0. 37
24X65	24	65	72	30	¹⁷	22	38	M8	5	30	37.4	440	244	90	0. 62
25X65	25	65	72	30	17	22	38	M8	5	30	37.4	460	234	90	0.61
28X65	28	65	72	30	17	22	38	M8	5	35	43.6	600	243	105	0. 58
30X65	30	65	72	30	17	22	38	M8	5	35	43.6	640	227	105	0. 56
32X65	32	65	72	30	17	22	38	M8	5	35	43.6	690	213	105	0. 55
35X65	35	65	72	30	17	22	38	M8	5	41	52.5	910	234	126	0.51
38X65	38	65	72	30	17	22	38	M8	5	41	52.5	9901	216	126	0. 48
40X65	40	65	72	30	17	22	38	M8	5	41	52.5	050	205	125	0. 46
30X80	30	80	87	33	20	25	41	M8	7	30	52.4	780	232	87	1.01
32X80	32	80	87	33	20	25	41	M8	7	30	52.4	830	217.5	87	0. 99
35X80	35	80	87	33	20	25	41	M8	7	35	61	1060	232	102	0. 96
38X80	38	80	87	33	20	25	41	M8	7	35	61	1150	214	102	0. 92
40X80	40	80	87	33	20	25	41	M8	7	35	61	1220	203	102	0. 89
42X80	42	80	87	33	20	25	41	M8	7	41	73.5	1540	233	122	0. 86
45X80	45	80	87	33	20	25	41	M8	7	41	73.5	1650	217	122	0. 82
48X80	48	80	87	33	20	25	41	M8	7	41	73.5	1760	203	122	0. 76
50X80	50	80	87	33	20	25	41	M8	7	41	73.5	1830	195	122	0. 73
注：Z6型胀紧联结套螺钉的机械性能等级为12.9级
