产品描述
Z4 type locking assemblies
 |

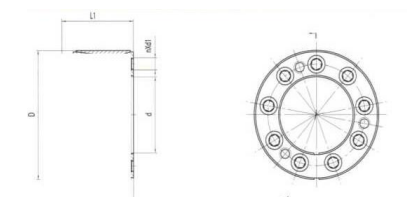

基本尺寸和参数 Basic dimensions and parameters of the locking assemblies,type Z4
| 规格sizes | 基本尺寸 Basicdimensions |
内六角螺钉 Inhe X agonscrews |
额定负荷 Ratedload |
?f N/mm2 |
Pf N/mm 2 |
G (kg) |
|||||||
| dXD | d | D | I | L | LI | 规格 | 数量 | Ma | Ft | Mt | |||
| mm | sizes | OT | N.m | KN | KN.m | ||||||||
| 70X120 | 70 | 12 | 56 | 62 | 74 | M12 | 8 | 145 | 197 | 6.85 | 201 | 117 | 3.3 |
| 80X130 | 80 | 13 | 56 | 62 | 74 | M12 | 10 | 145 | 291 | 11.65 | 263 | 162 | 3.7 |
| 90X140 | 90 | 140 | 56 | 62 | 74 | M12 | 12 | 145 | 290 | 13.00 | 234 | 150 | 4.0 |
| 100X160 | 10 | 16 | 74 | 80 | 94 | M14 | 15 | 230 | 389 | 19.70 | 213 | 133 | 7.2 |
| 110X170 | 11 | 17 | 74 | 80 | 94 | M14 | 15 | 230 | 483 | 22.60 | 242 | 157 | 7.7 |
| 120X180 | 12 | 18 | 74 | 80 | 94 | M14 | 15 | 230 | 482 | 28.90 | 222 | 148 | 8.3 |
| 125X185 | 12 | 18 | 74 | 80 | 94 | M14 | 15 | 230 | 480 | 30.00 | 212 | 143 | 8.5 |
| 130X190 | 13 | 19 | 74 | 80 | 94 | M14 | 15 | 230 | 480 | 31.20 | 205 | 140 | 8.8 |
| 140X200 | 14 | 200 | 74 | 80 | 94 | M14 | 18 | 230 | 574 | 40.20 | 227 | 159 | 9.3 |
| 150X210 | 15 | 210 | 74 | 80 | 94 | M14 | 18 | 230 | 572 | 42.90 | 212 | 152 | 10.0 |
| 160X230 | 16 | 230 | 88 | 94 | 110 | M16 | 18 | 355 | 800 | 64.00 | 227 | 158 | 14.9 |
| 170X240 | 17 | 240 | 88 | 94 | 110 | M16 | 18 | 355 | 795 | 67.80 | 214 | 152 | 15.7 |
| 180X250 | 18 | 250 | 88 | 94 | 110 | M16 | 21 | 355 | 923 | 83.00 | 235 | 170 | 16.4 |
| 190X260 | 190 | 260 | 88 | 94 | 110 | M16 | 21 | 355 | 921 | 88.00 | 223 | 163 | 17.2 |
| 200X270 | 20 | 270 | 88 | 94 | 110 | M16 | 24 | 355 | 1050 | 105.0 | 242 | 179 | 18.8 |
| 210X290 | 21 | 290 | 11 | 11 | 134 | M18 | 20 | 485 | 1118 | 117.0 | 197 | 143 | 23.0 |
| 220X300 | 22 | 30 | 11 | 11 | 134 | M18 | 21 | 485 | 1120 | 123.0 | 189 | 138 | 27.7 |
| 240X320 | 24 | 320 | 11 | 11 | 134 | M18 | 24 | 485 | 1280 | 153.0 | 198 | 148 | 29.8 |
| 250X330 | 25 | 330 | 110 | 11 | 134 | M18 | 27 | 485 | 1282 | 160.0 | 205 | 157 | 31.0 |
| 260X340 | 26 | 340 | 11 | 116 | 134 | M18 | 27 | 485 | 1430 | 186.0 | 205 | 157 | 32.0 |
| 280X370 | 28 | 37 | 13 | 136 | 156 | M20 | 24 | 690 | 1650 | 230.0 | 192 | 145 | 46.0 |
| 300X390 | 30 | 39 | 130 | 13 | 156 | M20 | 24 | 690 | 1650 | 245.0 | 179 | 138 | 49.0 |
| 注：Z4型胀紧联结套螺钉的机械性能等级为12.9级。 | |||||||||||||
