产品描述

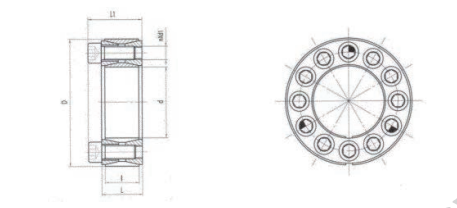

Z2 type locking assemblies

基本尺寸和参数 Jasic dimensions and parameters of the locking assemblies, type Z2

规格sizes dXD	基本尺寸 Basic dimensions					内六角螺钉In heX agon screws			额定负荷 Rated Hoad I		P N/m	Pf N/mm²	G(kg)
	d	D	I	L	Ll	规格 di sizes	数量 n QTY	Ma N.m	Ft KN	Mt	P N/m
	mm					规格 di sizes	数量 n QTY	Ma N.m	Ft KN	KN.m m²
19X47	19	47	17	20	26	M6	8	14	27j 0. 25		215	85	0. 24
20X47	20	47	17	20	26	M6	8	14	27	0.27	210	90	0. 23
22X47	22	47	17	20	26	M6	8	14	27	0.3	195	90	0.2
24X50	24	50	17	20	26	M6	9	14「30		0. 36	195	95	0. 26
25X50	25	50	17	20	26	M6	9	14	30	0. 38	190	95	0. 25
28X55	28	55	17	20	26	M6	10	14	33	0. 47	185	95	0.3
30X55	30	55	17	20	26	M6 10		14	33	0.5	175	95	0. 29
35X60	35	60	17	20	26	M6	12	14	40	0.7	180	105	0. 32
38X63	38	63	17	20	26	M6 14		14	46	0. 88	190	115	0. 33
38X65	38	65	17	20	26	M6	14	14	46	0. 88	190	110	0. 34
40X65	40	65	17	20	26	M6	14	14	46	0. 92	180	110	0. 34
42X72	42	72	20	24	32	M8	12	35	65	1.36	205	120	0. 48
45X75	45	75	20	24	32	M8	12	35	72	1.62	210	125	0. 57
50X80	50	80	20 24		32	M8	12	35	71	1.77	190	115	0.6
55X85	55	85	20	24	32	M8	14	35	83	2. 27	200	130	0. 63
60X90	60	90	20	24	32	M8	14	35	83	2. 47	180	120	0. 69
65X95	65	95	20	24	32	M8	16	35	93	3. 04	190	130	0. 73
70X110	70	110	24	28	38	M10	14	70	132	4.6	210	130	1.26
75X115	75	115	24	28	38	M10	14	70	131	4.9	195	125	1.33
80X120	80	120	24	28	38	M10	14	70	131	5.2	180	120	1.4
85X125	85	125	24	28	38	M10	16	70	148	6.3	195	130	1.49
90X130	90	130	24	28	38	M10	16	70	147	6. 6	180	125	1.53
95X135	95	135	24	28	38	M10	18	70	167	7.9	195	135	1.62
100X145	100	145	29	33	45	M12	14	125	192	9.6	195	135	2.01
105X150	105	150	29	33	45	M12	14	125	190	9. 98	165	115	2. 1
110X155	110	155	29	33	45	M12	14	125	191	10.5	180	125	2. 15
120X165	120	165	29	33	45	M12	16	125	218	13. 1	185	135	2. 35
125X170	125	170	29	33	45	M12	18	125	220	13. 78	160	118	2. 95
130X180	130	180	34	38	50	M12	20	125	272	17.6	165	120	3.51
140X190	140	190	34	38	50	M12	22	125	298	20.9	165	125	3. 85
150X200	150	200	34	38	50	M12	24	125	324	24.2	170	125	4. 07

规格sizes	基本尺寸 Basicdimensions					内六角螺钉 Inhe X agonscrews			额定负荷 Ratedload		Pf N/mm²	Pf N/mm²	G (kg)
dXD	d	D	I	L	LI	规格 ch	数量 n	MA	Ft	Mt
	mm					sizes	QTY	N.m	KN	KN.m
160X210	160	210	34	38	50	M12	26	125	350	28.0	170	130	4.30
170X225	170	225	38	44	58	M14	22	190	386	32.8	160	120	5.78
180X235	180	235	38	44	58	M14	24	190	420	37.8	165	125	6.05
190X250	190	250	46	52	66	M14	28	190	490	46.5	150	115	8.25
200X260	200	260	46	52	66	M14	30	190	525	52.5	150	115	8.65
210X275	210	275	50	56	72	M16	24	295	599	62.89	150	115	10.10
220X285	220	285	50	56	72	M16	26	295	620	68.00	150	115	11.22
240X305	240	305	50	56	72	M16	30	295	715	85.50	160	125	12.20
250X315	250	315	50	56	72	M16	32	295	768	96.00	165	130	12.70
260X325	260	325	50	56	72	M16	34	295	800	104.00	165	130	13.20
280X355	280	355	60	66	84	M18	32	405	915	128.00	145	115	19.20
300X375	300	375	60	66	84	M18	36	405	1020	153.00	150	120	20.50
320X405	320	405	72	78	98	M20	36	580	1310	210.00	150	120	29.60
340X425	340	425	72	78	98	M20	36	580	1310	224.00	145	115	31.10
360X455	360	455	84	90	112	M22	36	780	1630	294.00	145	115	42.20
380X475	380	475	84	90	112	M22	36	780	1620	308.00	135	110	44.00
400X495	400	495	84	90	112	M22	36	780	1610	322.00	130	105	46.00
420X515	420	515	84	90	112	M22	40	780	1780	374.00	135	110	50.00
450X555	450	555	96	102	126	M24	40	1000	2050	461.25	125	100	65.00
480X585	480	585	96	102	126	M24	42	1000	2160	518.40	125	100	71.00
500X605	500	605	96	102	126	M24	44	1000	2240	560.00	125	100	72.60
530X640	530	640	96	102	126	M24	45	1000	2330	617.00	120	100	83.60
560X670	560	670	96	102	126	M24	48	1000	2440	680.00	120	100	85.00
600X710	600	710	96	102	126	M24	50	1000	2580	775.00	120	100	91.00
630X740	630	740	96	102	126	M24	52	1000	2680	844.00	120	105	94.00
670X780	670	780	96	102	126	M24	56	1000	2820	944.00	115	100	101.00
710X820	710	820	96	102	126	M24	60	1000	2970	1054.00	115	100	106.00
750X860	750	860	96	102	126	M24	62	1000	3130	1173.00	115	100	112.00
800X910	800	910	96	102	126	M24	66	1000	3260	1300.00	115	100	118.00
850X960	850	960	96	102	126	M24	70	1000	3500	1487.00	115	100	125.00
900X1010	900	1010	96	102	126	M24	75	1000	3680	1650.00	115	100	132.00
950X1060	950	1060	96	102	126	M24	80	1000	3870	1838.00	115	100	139.00
1000X1110	1000	1110	96	102	126	M24	82	1000	4000	2000.00	110	100	146.00
注: Z2型胀紧联结套螺到的机械性能等级为12.9级。
